WOL Server once VPN user Connects

Home Solutions

Requirements

Server remains most of time in sleep to save power

User Connects with VPN type PPTP to the Router

Router automatically sends WOL (wake-on-lan) to Server which wakes up

Solution

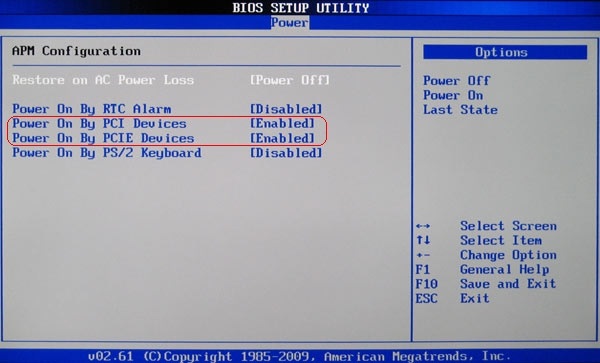

Enable in Bios Server to WakeUP from PCI (PCI Network Card)
Download Putty from below link, install and open it.
https://www.chiark.greenend.org.uk/~sgtatham/putty/latest.html

Will be shown the below table.

Connect to the router with ip 5.5.5.5 with ssh protocol, click > Open, then insert user/pass that has admin rights

Now we need to configure it as PPPTP Server
ubnt@EdgeRouter-6P:~$
configure
set vpn pptp remote-access authentication local-users username test password test
set vpn pptp remote-access authentication mode local
set vpn pptp remote-access client-ip-pool start 192.168.10.100
set vpn pptp remote-access client-ip-pool stop 192.168.10.200
set vpn pptp remote-access local-ip 192.168.10.1
set vpn pptp remote-access mtu 1300
commit
save
exit

Creating the directory where the script will be saved:
ubnt@EdgeRouter-6P:~$ sudo su
mkdir /config/user-data
cd /config/user-data

Modify the script:
br01 is the bridge interface of the router where server is connected
d0:9c:23:df:78:98 is the mac address of the server
vi wol0.sh

Copy paste the below script
if ip link show pptp0 | grep -q "state UP\|state UNKNOWN"; then
COMMAND="sudo etherwake -i br01 30:9c:23:df:78:98"
$COMMAND
else
echo "PPTP interface pptp0 is down."
fi
exit 0

Write and Quit with below commands
esc
:wq!

Make the script executable
chmod +x /config/user-data/wol0.sh

Modify the crontab to add this script.
It will be executed every 1minute
crontab -e

Paste the below text
* * * * * /config/user-data/wol0.sh

Write and Quit with below commands
esc
:wq!
