VPN Network Design with Wireguard

Home Solutions



Requirements

  • Deploy an Ubuntu virtual machine in the cloud to act as the HUB and install a WireGuard server on it

  • Remote sites, referred to as spokes, should connect to the HUB via VPN

  • Only selected spoke network segments will be routed through the HUB

  • MikroTik routers (spokes) should communicate with each other through the HUB

  • Design the network to be highly scalable and easy to manage

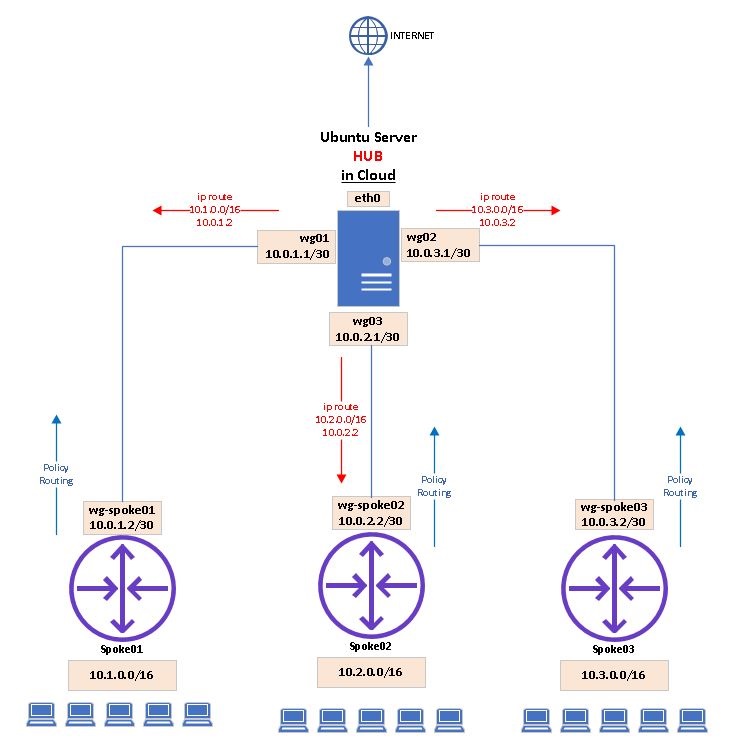

Below is the network design

Solution




>>>>>>>>HUB WIREGUARD<<<<<<<<<<

Install wireguard in ubuntu server and go to the default directory of wireguard
apt update && sudo apt upgrade -y
apt install wireguard -y
cd /etc/wireguard


Generate public and private keys for the hub and the 3 spokes (as example)
wg genkey | tee privatekey-hub | wg pubkey > publickey-hub
wg genkey | tee privatekey-spoke01 | wg pubkey > publickey-spoke01
wg genkey | tee privatekey-spoke02 | wg pubkey > publickey-spoke02
wg genkey | tee privatekey-spoke03 | wg pubkey > publickey-spoke03

Create 3 wireguard files, which will be used from wireguard service in hub.
Remember that Wireguard service executes all files with ".conf" on its directory "/etc/wireguard".
For each Spoke we will create an individual wireguard config.
The keys will be used from ones generated above.

wg File for Spoke01
vi wg01.conf

#
[Interface]
Address = 10.0.1.1/30
ListenPort = 58101
MTU = 1420
PrivateKey = "privatekey-hub"

PostUp = iptables -A FORWARD -i wg0 -j ACCEPT; iptables -t nat -A POSTROUTING -o eth0 -j MASQUERADE
PostDown = iptables -D FORWARD -i wg0 -j ACCEPT; iptables -t nat -D POSTROUTING -o eth0 -j MASQUERADE

PostUp = ip route add 10.1.0.0/16 via 10.0.1.2
PostDown = ip route del 10.1.0.0/16 via 10.0.1.2

# SPOKE01
[Peer]
PublicKey = "publickey-spoke01"
AllowedIPs = 10.0.1.2,10.1.0.0/16
#
esc
:wq!

wg File for Spoke02
vi wg02.conf

#
[Interface]
Address = 10.0.2.1/24
ListenPort = 58102
MTU = 1420
PrivateKey = "privatekey-hub"

PostUp = iptables -A FORWARD -i wg0 -j ACCEPT; iptables -t nat -A POSTROUTING -o eth0 -j MASQUERADE
PostDown = iptables -D FORWARD -i wg0 -j ACCEPT; iptables -t nat -D POSTROUTING -o eth0 -j MASQUERADE

PostUp = ip route add 10.2.0.0/16 via 10.0.2.2
PostDown = ip route del 10.2.0.0/16 via 10.0.2.2

# SPOKE01
[Peer]
PublicKey = "publickey-spoke01"
AllowedIPs = 10.0.2.2,10.2.0.0/16
#
esc
:wq!

wg File for Spoke03
vi wg03.conf

#
[Interface]
Address = 10.0.3.1/24
ListenPort = 58103
MTU = 1420
PrivateKey = "privatekey-hub"

PostUp = iptables -A FORWARD -i wg0 -j ACCEPT; iptables -t nat -A POSTROUTING -o eth0 -j MASQUERADE
PostDown = iptables -D FORWARD -i wg0 -j ACCEPT; iptables -t nat -D POSTROUTING -o eth0 -j MASQUERADE

PostUp = ip route add 10.3.0.0/16 via 10.0.3.2
PostDown = ip route del 10.3.0.0/16 via 10.0.3.2

# SPOKE01
[Peer]
PublicKey = "publickey-spoke01"
AllowedIPs = 10.0.3.2,10.3.0.0/16
#
esc
:wq!

Check if the 3 files will be shown in the directory
root@user:/etc/wireguard# ls -l
-rw-r--r-- 1 root root 50 May 11 08:06 wg01.conf
-rw-r--r-- 1 root root 50 May 11 08:06 wg02.conf
-rw-r--r-- 1 root root 50 May 11 08:06 wg03.conf

Start the 3 services of wireguard
wg-quick up wg01
wg-quick up wg02
wg-quick up wg03


Check if they are running
wg
Expected output as below
interface: wg01
public key: "publickey-hub"
private key: (hidden)
listening port: 58101

interface: wg02
public key: "publickey-hub"
private key: (hidden)
listening port: 58102

interface: wg03
public key: "publickey-hub"
private key: (hidden)
listening port: 58102




>>>>>>>>HUB ROUTING <<<<<<<<<<

Enable IP Routing in server
vi /etc/sysctl.conf
Uncomment
net.ipv4.ip_forward=1
esc
:wq!





>>>>>>>>SPOKE01 WIREGUARD<<<<<<<<<<

Now we need to configure one of the remote routers/Spokes
Connect to mikrotik router with ssh from putty
Add Wireguard interface. The private key is got from keys generated above "privatekey-spoke01"
[admin@Mikrotik] /interface/wireguard> add name=wg-spoke01 private-key=privatekey-spoke01

Add Wireguard peer
/interface wireguard peers add allowed-address=0.0.0.0/0 disabled=yes endpoint-address="HUB-Public-IP" endpoint-port=58101 interface=wg-spoke01 public-key="publickey-hub"


>>>>>>>>SPOKE01 POLICY ROUTING<<<<<<<<<<

Add IP on wg-spoke01
/ip address
add address=10.0.1.2/30 interface=wg-spoke01 network=10.0.1.0/30
Add the address 10.1.0.1/16 in LAN
[admin@Mikrotik] > ip address/add address=10.1.0.1/16 interface=LAN

Add routing table for policy routing
/routing table/add disabled=no fib name=WG-TABLE

Mark the packets from LAN to be pushed to Wireguard VPN
/ip firewall mangle
add action=mark-packet chain=prerouting new-packet-mark=WG-LAN-PACKET passthrough=yes src-address=10.1.0.0/16
add action=mark-routing chain=prerouting new-routing-mark=WG-TABLE packet-mark=WG-PACKET passthrough=yes

Add routing table for policy routing
/routing table/add disabled=no fib name=WG-TABLE

Add Policy Route to push LAN market packets toward HUB
/ip route
add disabled=no distance=1 dst-address=0.0.0.0/0 gateway=10.0.1.1 pref-src="" routing-table=WG-TABLE scope=30 suppress-hw-offload=no target-scope=10

Similar steps should be followed for the other two spokes
