Requirements

Mini PC machine with ubuntu installed on it

Connected to the network using a single port as Trunk (RJ45)

It should run IPv6 DHCP Server

The IPv6 leases should be a readable manner

There will be Mikrotik Routers per each network to push the defaul route, ensure no SLAAC are generated from them
(SLAAC pushes autogenerated IPv6 which is not easy readable)

The first IP of the subnet will be at Mikrotik gateway, and the second at IPv6 DHCP server

Web page to show the IPv6 leases

Main IPv6 subnet is 2807:a00::/32

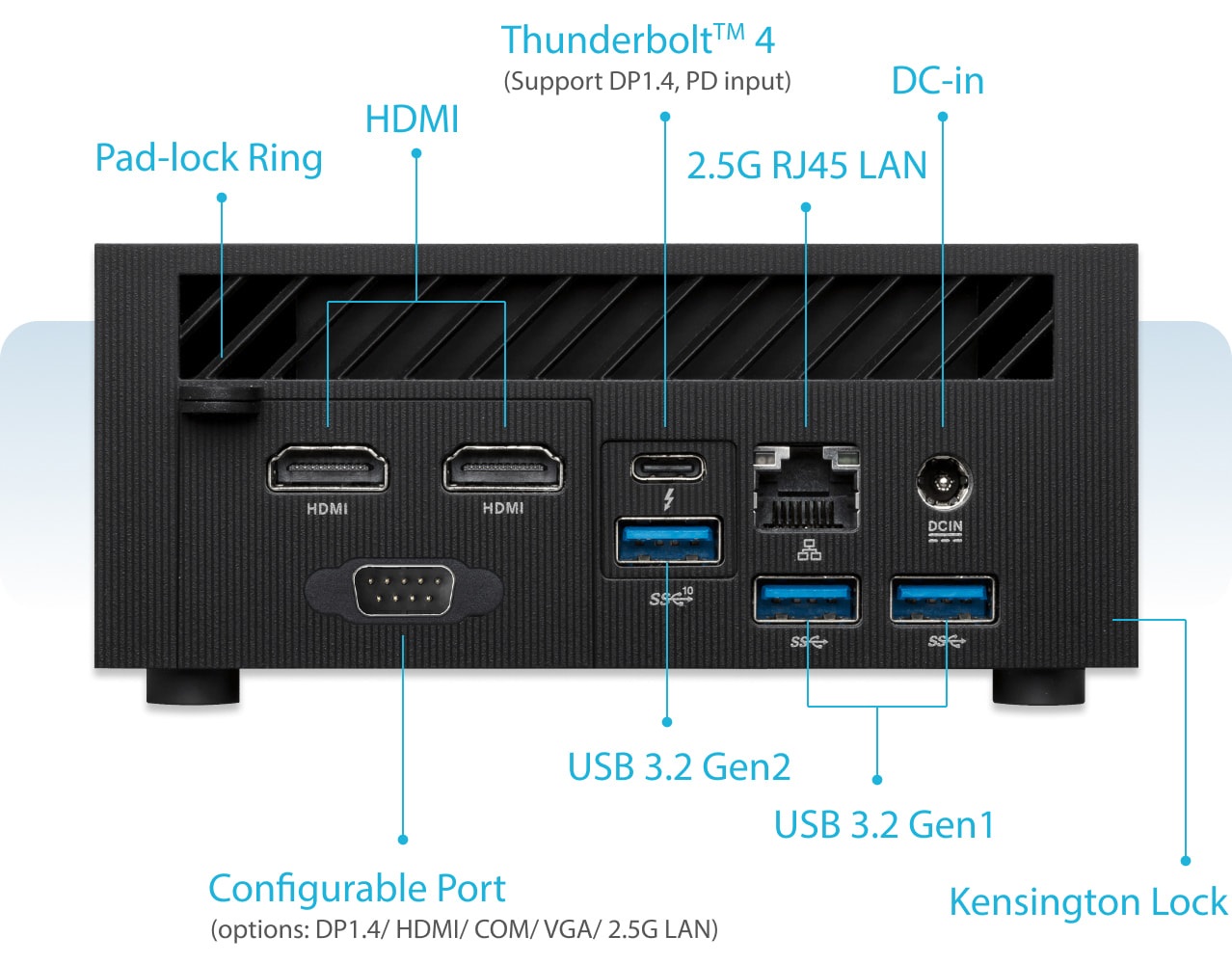

Below is the mini pc to be installed

Solution

Download Putty from below link, install and open it.
https://www.chiark.greenend.org.uk/~sgtatham/putty/latest.html

Will be shown the below table.

Connect to the ubuntu with ip 5.5.5.5 with ssh protocol, click > Open, then insert user/pass that has sudoer rights

Modify the network interface IPs. Its taken as example the IPv6 subnets:
2807:a00:1::/64 for the Main interface (enp2s0)
2807:a00:2::/64 for vlan 2 that is on Main interface as subinterface

Modify the file
sudo vi /etc/netplan/00-installer-config.yaml

Paste the commands as below:
network:
  ethernets:
    enp2s0:
      dhcp4: no
      dhcp6: no
      addresses:
        - 192.168.1.2/24
        - 2807:a00:1::2/64
      routes:
          - to: default
            via: 192.168.1.1
         - to: default
            via: 2807:a00:1::1
     nameservers:
        addresses:
         - 8.8.8.8
         - 1.1.1.1
         - 2001:4860:4860::8888
         - 2620:fe::9
  vlans:
    enp2s0.2:
         id: 2
         dhcp4: no
        dhcp6: no
        addresses:
          - 192.168.2.2/24
          - 2807:a00:2::2/64
        link: enp2s0
  version: 2

Write and Quit with below commands
esc
:wq!

Now install kea ipv6 dhcp server
sudo apt update
sudo apt install kea-dhcp6-server

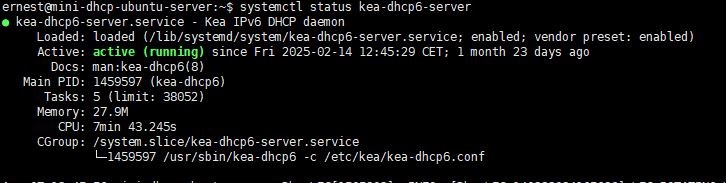

Check if IPv6 kea is running fine (active means is fine)
systemctl status kea-dhcp6-server

Modify the kea dhcp file
vi /etc/kea/kea-dhcp6.conf

Paste the commands as below:
{
    "Dhcp6": {
        "interfaces-config": {
            "interfaces": ["*"]
        },
        "lease-database": {
            "type": "memfile",
            "persist": true,
            "name": "/var/lib/kea/kea-leases6.csv",
            "lfc-interval": 86400,
            "max-row-errors": 100
        },
        "preferred-lifetime": 500000,
        "valid-lifetime": 601200,
        "renew-timer": 100,
        "rebind-timer": 200,

        "subnet6": [
           {
               "subnet": "2807:a00:1::/64",
               "interface": "enp2s0",
               "pools": [
                   { "pool": "2807:a00:1::101-2807:a00:1::109" },
                   { "pool": "2807:a00:1::110-2807:a00:1::119" },
                   { "pool": "2807:a00:1::120-2807:a00:1::129" },
                   { "pool": "2807:a00:1::130-2807:a00:1::139" },
                   { "pool": "2807:a00:1::140-2807:a00:1::149" },
                   { "pool": "2807:a00:1::150-2807:a00:1::159" },
                   { "pool": "2807:a00:1::160-2807:a00:1::169" },
                   { "pool": "2807:a00:1::170-2807:a00:1::179" },
                   { "pool": "2807:a00:1::180-2807:a00:1::189" },
                   { "pool": "2807:a00:1::190-2807:a00:1::199" },
                   { "pool": "2807:a00:1::290-2807:a00:1::299" },
                   { "pool": "2807:a00:1::390-2807:a00:1::399" },
                   { "pool": "2807:a00:1::490-2807:a00:1::499" },
                   { "pool": "2807:a00:1::590-2807:a00:1::599" },
                   { "pool": "2807:a00:1::690-2807:a00:1::699" },
                   { "pool": "2807:a00:1::790-2807:a00:1::799" },
                   { "pool": "2807:a00:1::890-2807:a00:1::899" },
                   { "pool": "2807:a00:1::990-2807:a00:1::999" }
               ]
   },


   {
              "subnet": "2807:a00:2::/64",
               "interface": "enp2s0.2",
               "pools": [
                   { "pool": "2807:a00:2::101-2807:a00:2::109" },
                   { "pool": "2807:a00:2::110-2807:a00:2::119" },
                   { "pool": "2807:a00:2::120-2807:a00:2::129" },
                   { "pool": "2807:a00:2::130-2807:a00:2::139" },
                   { "pool": "2807:a00:2::140-2807:a00:2::149" },
                   { "pool": "2807:a00:2::150-2807:a00:2::159" },
                   { "pool": "2807:a00:2::160-2807:a00:2::169" },
                   { "pool": "2807:a00:2::170-2807:a00:2::179" },
                   { "pool": "2807:a00:2::180-2807:a00:2::189" },
                   { "pool": "2807:a00:2::190-2807:a00:2::199" }
               ]
}

        ],           "option-data": [
            {
                "name": "dns-servers",
                "data": "2001:4860:4860::8888, 2606:4700:4700::1111"
            }
        ],
        "loggers": [
            {
                "name": "kea-dhcp6",
                "output_options": [
                    {
                        "output": "/tmp/kea-dhcp6.log"
                    }
                ],
                "severity": "DEBUG",
                "debuglevel": 0
            }
        ]
    } }

Install apache
sudo apt install apache2 -y
sudo systemctl start apache2
sudo systemctl enable apache2

Configure apache to use the a directory for web files, and ensure to have "DocumentRoot /var/www/html"
sudo vi /etc/apache2/sites-available/000-default.conf

Create a file as below, what it does is as below:
Checks the IPv6 leases
Orders this leases from small to big (using awk)
Creates a web file
Copies the web file to folder of apache

sudo vi /usr/local/bin/web.sh

host=`hostname`
now=`date +"%d-%b-%y"`
now=`echo $now| tr '[a-z]' '[A-Z]'`
yest=`TZ=CST+24 date +%d-%b-%y`
yest=`echo $yest| tr '[a-z]' '[A-Z]'`
sub="Jobs-$host-$now-HealthReport"
awk -F, '!seen[$1]++' /var/lib/kea/kea-leases6.csv > /var/lib/kea/kea-leases6-clean1.csv
sort -k1 /var/lib/kea/kea-leases6-clean1.csv > /var/lib/kea/kea-leases6-clean.csv
if [ -s /var/lib/kea/kea-leases6-clean.csv ]
then

awk 'BEGIN{
FS=","
print """IPV6 DHCP LEASES - LIVE DATABASE"
print ""
print ""
print ""
print "IPv6 LEASEHOSTNAMEMAC ADDRESS"
}
{
    printf ""
            for(i=1;i<=1;i++){

                      if(i == 1 && $i == "N" || i == 4 && $i == n || i == 4 && $i == y )
                    {
                            printf "%s", $i
                    }
                    else if(i == 1 && $i == "Y" || i == 4 && $i != n && $i != y)
                    {
                            printf "%s", $i
                    }
                    else
{
                            printf "%s", $i
}
            }
for(i=12;i<=13;i++){
                      if(i == 1 && $i == "N" || i == 4 && $i == n || i == 4 && $i == y )
                    {
                            printf "%s", $i
                    }                     else if(i == 1 && $i == "Y" || i == 4 && $i != n && $i != y)
                    {
                            printf "%s", $i
                    }
                    else
{
                            printf "%s", $i
}
            }
            print ""
    }
END{
            print ""
    }' y="$yest" n="$now" /var/lib/kea/kea-leases6-clean.csv > ip-addresses.html
cp ip-addresses.html /var/www/html/IPV6-ADDRESSES.html
else
echo "file not found"
fi

Make it executable
sudo chmod +x /usr/local/bin/web.sh

Execute this script every 1min, insert the "* * * * * /usr/local/bin/web.sh" on crontab
crontab -e
* * * * * /usr/local/bin/web.sh
esc
:wq!

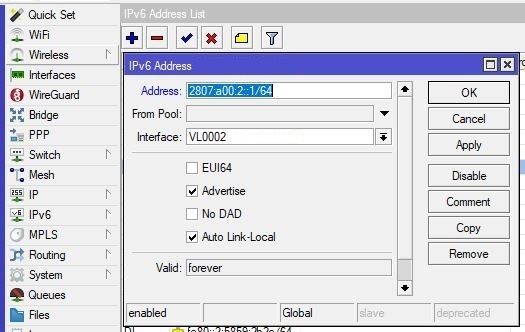

Now we need to disable SLAAC at Mikrotik. IPv6 > Addresses
Click "Advertise" and "Autolink local". Advertise is to push default route over RA.

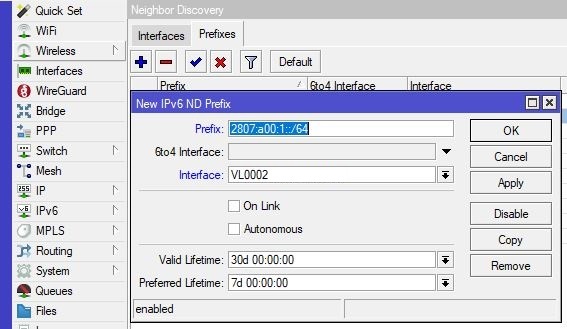

Add the prefix manually add disable "On Link" and "Autonomous". IPv6 > ND > Prefixes

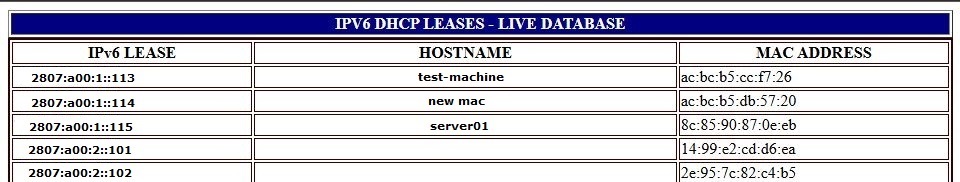

The results will be as below
